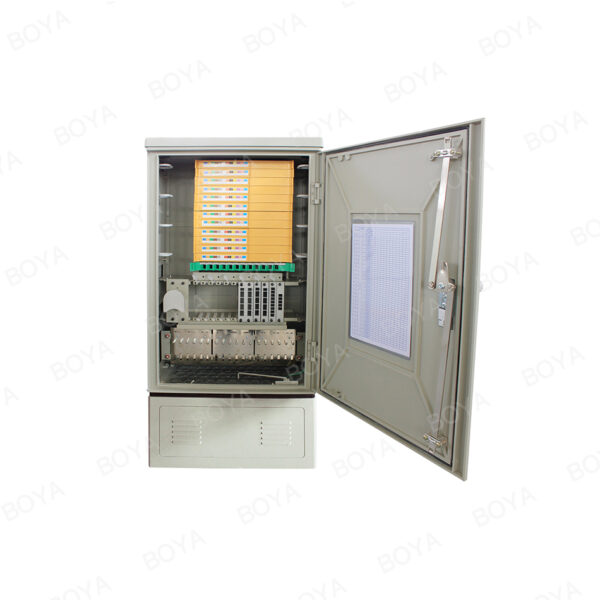

144 Cores Optical Cross-Connection Cabinet

Product Summary
Communication Optical Cross-Connection Cabinet is the interface equipment suitable for the exchanging between trunk optical cable and optical distribution cable. Integrating heat sealing, roll storage and distribution of the fiber. It can be mounted both floor and aerial modes.

Features
1. It is designed and manufactured according to the latest revised edition of YD/T 998 trade criterion.
2. Cabinet body adopts two kinds of materials including Sheet Molding Compound(SMC) and stainless steel.
3. Heat insulation device can be installed inside stainless steel box body according to users’ requirements to withstand the affect of climate and environment.
4. Apply optical fiber splice tray of double-sided structure to make full use of the two sides of the board, and integrate heat sealing and wiring into one unity. Each board can be fixed with twelve FC/SC/LC type adapters.
5. Install adapter on the face side of optical fiber splice tray in a bayonet way at an oblique angle of 30 degrees to ensure curve radius of optical fiber and prevent from being damaged by laser light.
6. It is applied to common optical cables and ribbon-shaped optical cables, with large wiring space. All optical cables and optical fibers can be effectively protected inside the distribution frame.
7. Cabinet door lock has good protection function against breaking and is flexible and reliable to unlock and lock up. The opening angle of box door is more than 120 degrees. The box is of good sealing performance.
8. Users can choose suitable base and platform for fixing electric pole.

Technical Parameters
Operating Temperature: -40℃ ～ ＋60℃
Relative Humidity: ≤ 95% (+40℃)
Atmospheric Pressure: 70 ~ 106 Kpa
Withstand Voltage: > 3000V(DC)/min without breakdown and flashover
Insulating Resistance: ≥ 20000MΩ/500V
Sealability: Meet the IP65 level requirements in GB/T4208-2017
